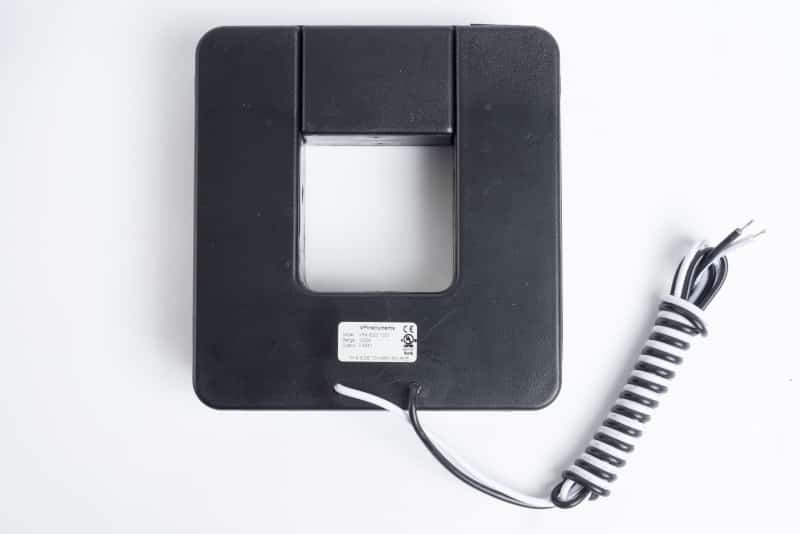

Current Transformers for measuring the current of your compressors and machines
VPInstruments Current Transformer
Measure compressor efficiency
Click to enlarge

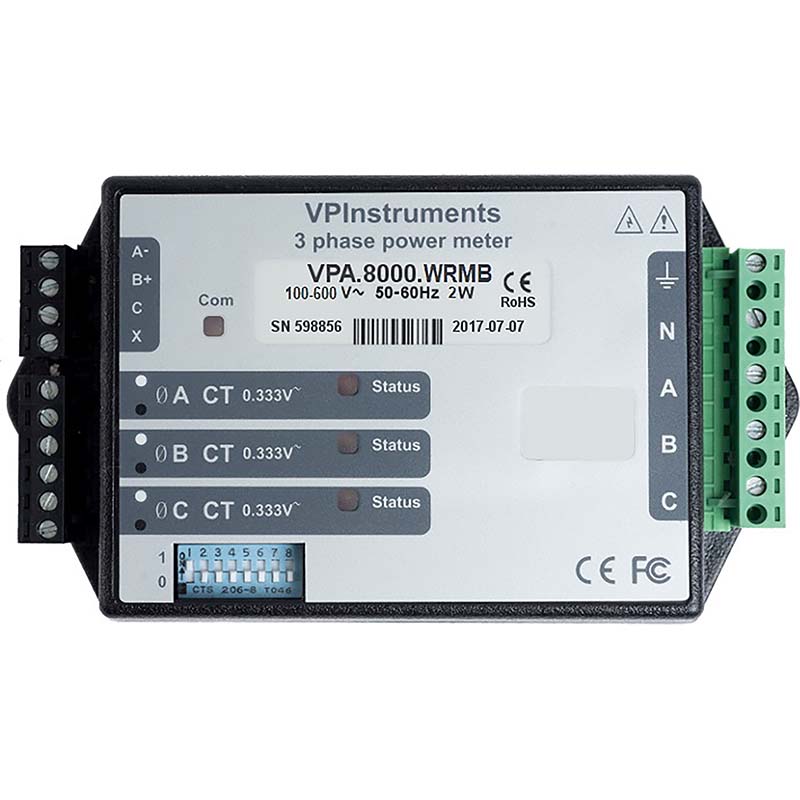

3 Phase Power Meter

The VPInstruments 3 Phase Power Meter is the highly accurate power meter for your permanent power measurements. With the power meter you can measure the voltage and current of all three phases. It provides power, voltage, current, cos(phi) and many more electrical parameters via the RS485 (Modbus RTU) interface.

Download brochure


Request a quote
Go to webshop
Compare
  • Description
  • Specifications
  • Documentation
Description

3 Phase Power Meter highlights

  • True RMS power measurement of single-phase or three-phase systems
  • One size fits all: one model for 100 to 600 Vac, 50 / 60Hz
  • RS485 (Modbus RTU) output
  • Wye or delta in one model
  • For permanent installation
  • 0.3333 VAC input for current transformers (CT)
  • LED indicator for CT status and serial communication
  • Configurable using Modbus

 Applications

  • Power consumption of large consumers (i.e. compressors, dryers, pumps, water chillers)
  • Submetering
  • Cost allocation
  • Baseline condition monitoring
  • Energy management
  • Efficiency calculations (i.e. compressor electrical usage vs output)

3 Phase Power Meter package

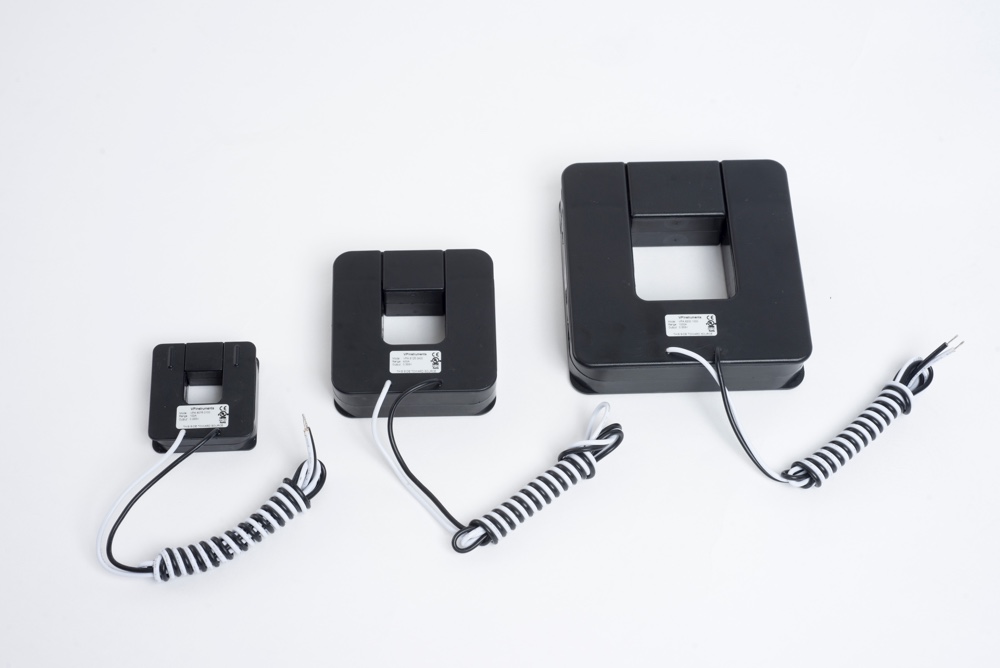

Complete your 3 Phase Power Meter with current transformers. For each phase measured, you will need a current transformer. Check the maximum amperage and select the right transformer for your 3 Phase Power Meter.

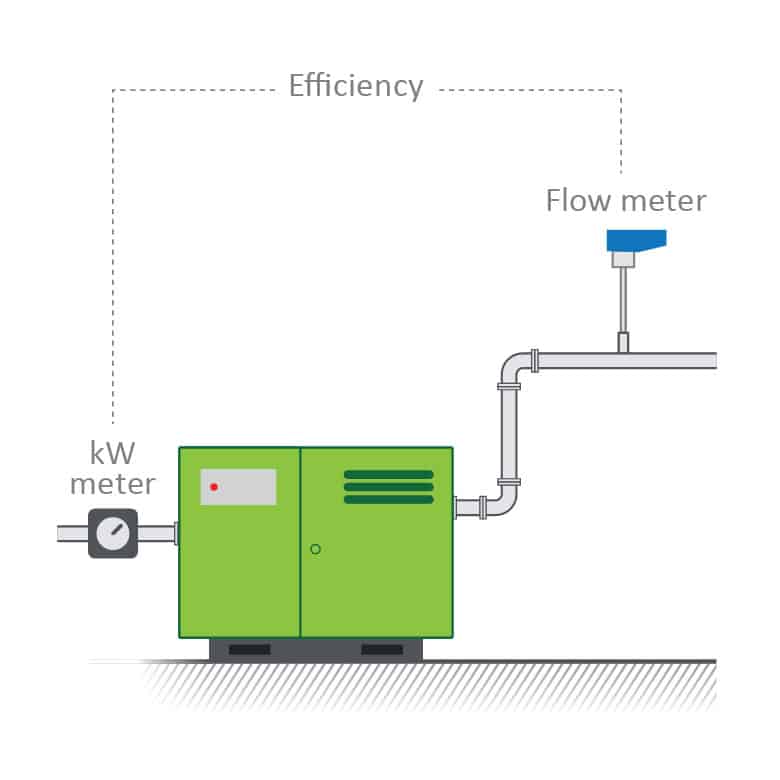

Monitor your compressor performance and efficiency

You can combine the power meter with one or more flow meters to monitor the compressor efficiency in real-time.

Specifications

Specifications

Accuracy +/- 0.5% reading
Power supply Power from measured voltage < 2 W
Voltage input 100 .. 600 (L to N), 100 .. 600 (L to L)
Current input 5 .. 1500 Amps per phase
Output RS485 (Modbus RTU), 2 wire
Size 153 x 85 x 38 mm | 6.02 x 3.35 x 1.50”
Weight 307…314 gram | 10.8…11.1 oz
Environment Indoor use
Operational temperature -30…55 °C | -22…131 °F
Operational humidity Non-condensing, 5 to 90% relative humidity
Operating frequencies 50 / 60 Hz
Documentation

Documentation

Power Meter Brochure
