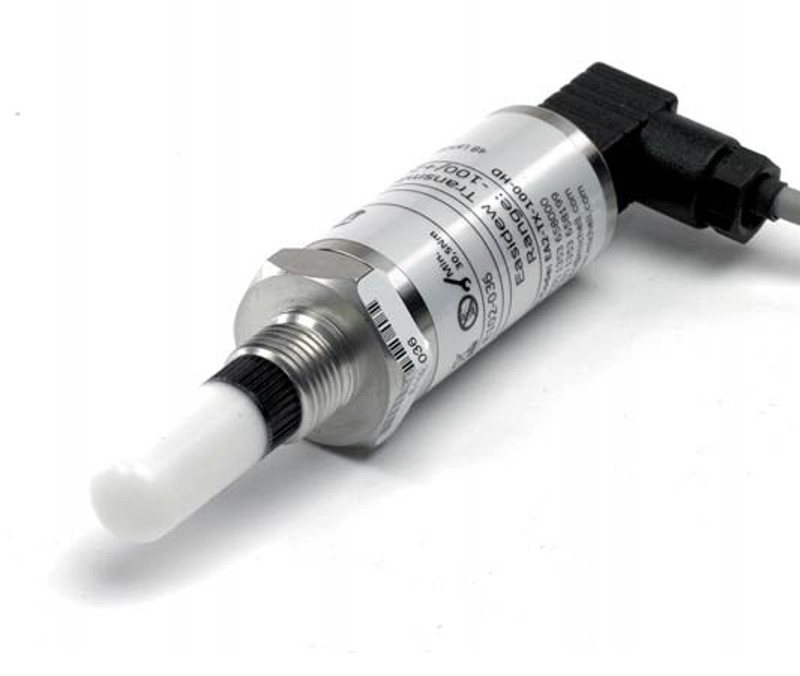

Dew Point Sensor – extreme dry air

Encountering humidity in your pipes is acceptable to a certain level, but you don’t want to exceed the acceptable limits. In order to stay in control of your humidity by managing your temperature and pressure levels  you need dew point transmitters. VPInstruments’ dew point transmitters are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible.

Download brochure


Request a non-binding quote
Ask us a question
Compare
  • Description
  • Specifications
  • Brochure
Description

VPInstruments’ dew point transmitters are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.

Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time.

Features and benefits

  • 2-wire loop powered connection
  • Dew point or ppm moisture content
  • IP66 (NEMA 4X)
  • Excellent sensor protection
  • Fast response time

Application

  • Extreme dry air
Specifications

Specifications

Dew point range -100 … +20° C | -148 … 68° F dew point
Temperature -40 … +60° C | -40 … 140° F
Humidity  0 … 100% RH
Pressure 450 barg maximum
Output 4 … 20 mA (2-wire) current source, configurable over the entire range
Power supply 12 – 28 VDC
Dimensions  L 132 mm x Ø 27 mm | 5.2 x 1.1″
Brochure

Brochure

Dew Point Sensor Brochure

Related products

VPInstruments VP Dew Point Sensor Transmitter
Close

VP Dew Point Sensor

Maintaining the dew point of your air or gas system will prolong the life of your equipment.
